VIC05_0004 - VIC05_0004

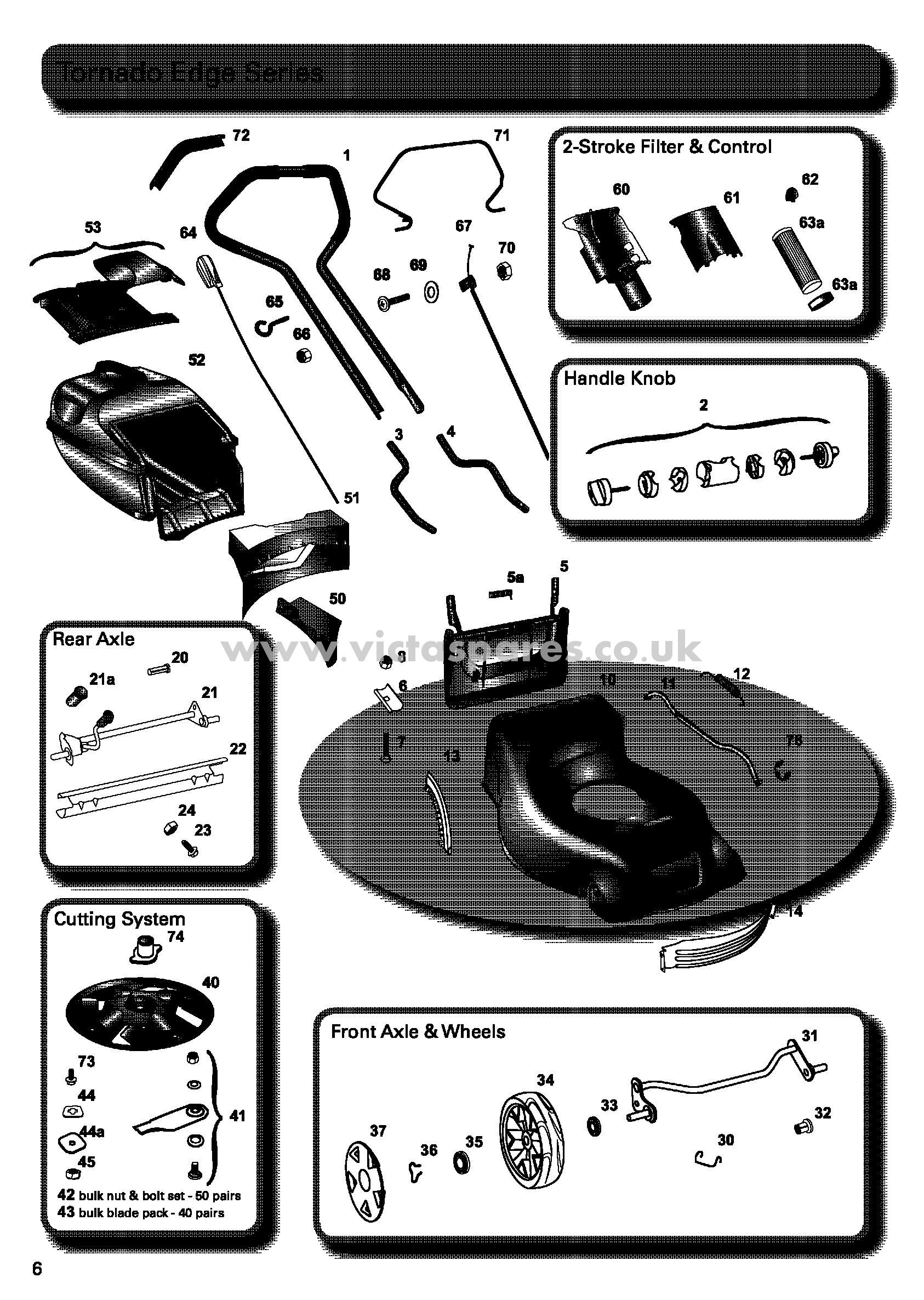

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

VIC05_0004

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
CH86360G Gloss black £243.43 Add
CH86360N Flame red £243.43 Add
GC11792P Blue & silver GC11765P £184.19 Add
AF07846G 2-stroke fi lter housing – upper black £24.47 Add
002 CH86391G Handle locking kit – black £49.16 Add
003 CH86292L Lower handle – right £75.43 Add
004 CH86291L Lower handle – left £75.43 Add
005 CH86282G Black £109.61 Add
006 CH86410A Bracket handle £8.48 Add
007 EN72534D NUT - BLADE DISK, 2 STROKE £9.13 Add
008 EN72770B SLEEVE PULLEY £92.64 Add
010 CH86360R Space blue £295.36 Add
011 CH86268D Connecting link £58.02 Add
012 CA09347A WASHER - BLADE TENSION £3.32 Add
013 CH86281A Height adjustment segment block £32.62 Add
014 CH86440A Front skirt £71.14 Add
01a CH86327A Aerogrip handle upper - std £82.56 Add
01b CH86357L Aerogrip handle upper - brake N/A POA
020 CH80903A WHEEL WASHER £6.03 Add
021 CH86260AW Rear axle CH86426A N/A POA
022 CH86407A Rear safety skirt £87.31 Add
023 CH86026A SIDE FLAP ASSEMBLY, RUBBER £136.45 Add
024 HA24844D NUT £5.51 Add
030 CH84899B CLIP £5.08 Add
031 CH86262AW Front axle CH86435A N/A POA
032 CH86276A BUSH £5.38 Add
033 CH86308A Wheel bush £9.65 Add
034 CH86271A Wheel assembly (Razor) £83.61 Add
035 VBP0024 WHEEL BEARING £11.82 Add
036 CH86298P Wheel retainer £5.70 Add
037 CH86275A Hub cap & retainer assembly £23.86 Add
040 CA09459G Blade disc – mulch or catch £116.14 Add
041 CA09470B KIT-BLADE & BOLT 19 INCH MOWERS £28.08 Add
042 HA24847D NUT £8.17 Add
043 CA09470P Bulk blade pack – 40 pairs £176.31 Add
045 CH85985A PLUG - 4 STROKE ONLY £6.71 Add
050 CH86408A Support bracket £26.44 Add
051 CH86409A Mulching plug £146.95 Add
052 GC11792P Blue & silver GC11765P £184.19 Add
053 GC11767V Vent & mesh pack £74.15 Add
05a CH86825A SPACER £5.80 Add
060 AF07845G 2-stroke fi lter housing – lower black £24.47 Add
061 AF07846R Blue N/A POA
062 AF07847A 2-stroke throttle knob £17.19 Add
063 AF07282U CARTRIDGE £7.06 Add
065 CH86177D Guide – starter cord £40.77 Add
066 HA24996D NUT, ZONE STARTER EYELET £5.44 Add
067 TC04431A BRAKE CABLE £79.00 Add
068 HA20421D Screw 3/16” £5.44 Add
069 HA22274D Washer 3/16” £3.56 Add
070 HA24847D NUT AND SHAKE PROOF WASHER £8.17 Add
071 CH86348G BRAKE BAIL £87.34 Add
072 CH86350A BRAKE BAIL COVER, PLASTIC £35.95 Add
073 CH80854G SADDLE PLATE £8.46 Add
074 CA09444G BLADE DISC £104.54 Add
076 EN72620B WASHER - BLADE DISK, 2 STROKE £7.75 Add
13a CH81445A WHEEL DUST SEAL £3.46 Add
44a HA25131D CIRCLIP - CONNECTING LINK £6.72 Add
44b EE14537B Washer – 4-stroke models £16.04 Add
63a AF07848A 2 stroke throttle control lever £48.74 Add
64a TC04429AZ Throttle cable (B & S) TC04429A N/A POA
64b TC04430A Throttle cable (Honda) £88.42 Add
