FG417_0020 - ALLOY K DECK - MULCH OR CATCH

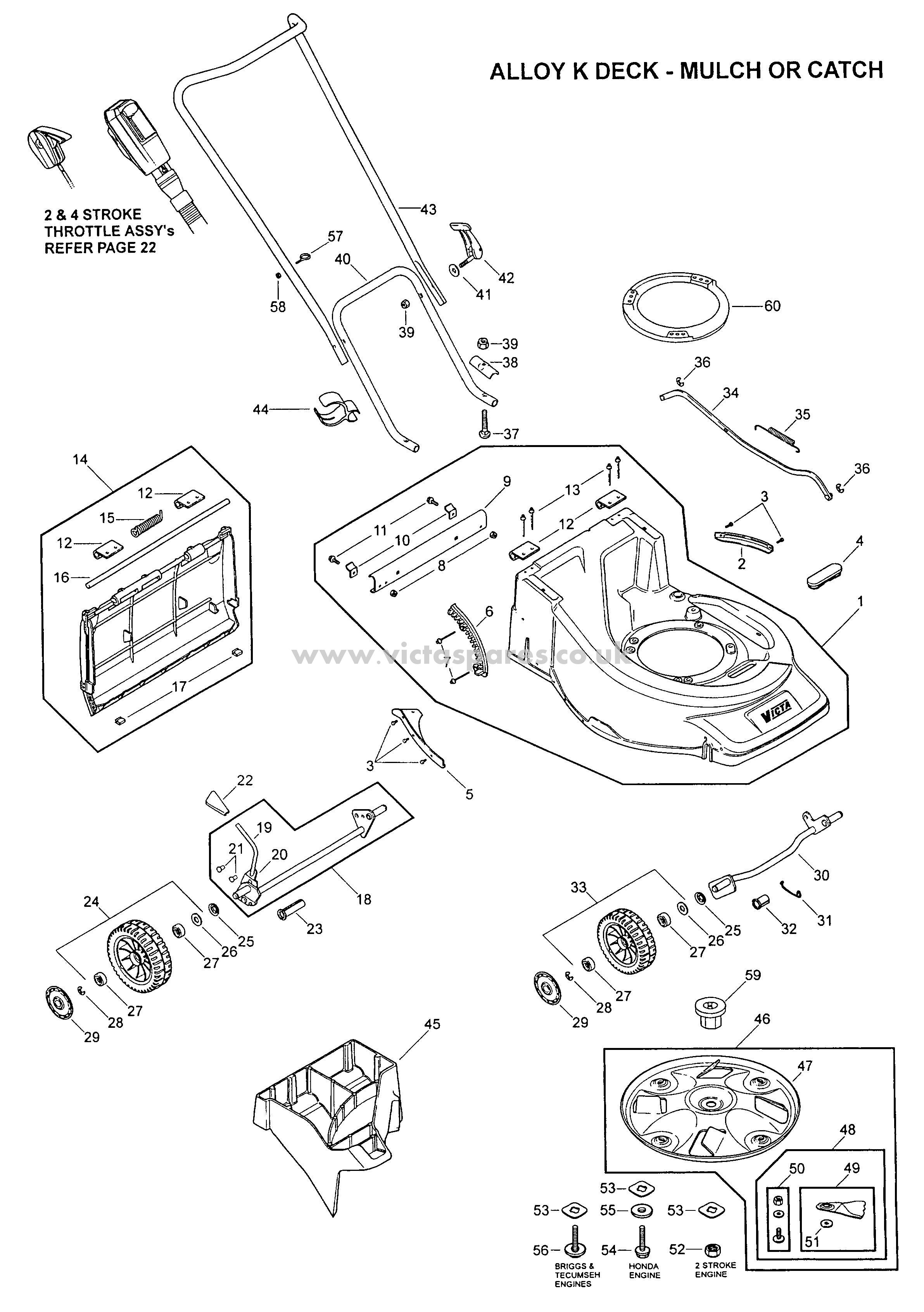

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG417_0020

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 CH86067L BASEPLATE ASSY £445.77 Add
002 CH86069A SKIRT - ANTI TRAIL £23.01 Add
003 HA20415D BOLT - G/BOX COVER £6.05 Add
004 CH85985A Plug - 4 stroke only £7.19 Add
005 CH86070G BRACKET- PLUG SUPPORT £25.85 Add
006 CH85994A Segment block £24.15 Add
007 HA25674A Rivet – Rear Axle Clip £4.29 Add
008 HA24844D Nut – rear safety skirt £6.05 Add
009 CH85910A SAFETY SKIRT £89.99 Add
010 CH84863D Axle retainer CH84863B £6.74 Add
011 HA21314D BOLT - AXLE CLAMP £10.57 Add
012 CH85958D Bracket - Rear flap £5.26 Add
013 HA25167A Rivet £6.05 Add
014 CH86225A Rear flap assy £97.59 Add
015 CH85865A FLAP SPRING £8.20 Add
016 CH85967D Pivot rod - Rear flap £27.98 Add
017 HA25687D U-Clip - Rear flap £16.72 Add
018 CH86154A AXLE ASSY- REAR £149.37 Add
019 CH86005A Height adjust lever £70.53 Add
020 CH82904B Spring - Height lever N/A POA
021 HA25184B Rivet - Height adjust handle CH84324B £5.89 Add
022 CH82917A Knob – Height adjuster £10.48 Add
023 CH86120A Axle assy - Rear £86.86 Add
024 CH86248A REAR WHEEL ASSY PUSH - 14.2 MM DIA AXLE £109.41 Add
025 CH81445A Dust seal stub axle to wheel £3.84 Add
026 CH80903A Wheel washer £6.60 Add
027 VBP0024 WHEEL BEARING £11.82 Add
028 VBP0002 CIRCLIP £3.76 Add
029 CH86187V HUB CAP N/A POA
030 CH85955DZ Axle - Front CH85955G N/A POA
031 CH84899B CLIP £5.08 Add
032 CH82399A BUSH £6.10 Add
033 CH87082G WHEEL £49.42 Add
034 CH86083D CONNECTING LINK £61.72 Add
035 CH85943A Spring – connecting link £15.98 Add
036 HA25131D Circlip £7.33 Add
037 HA20310D Bolt handle knob £5.07 Add
038 CH80854G Saddle plate - Black £9.17 Add
039 HA24845D Nut £6.39 Add
040 CH86202G Lower handle looped £97.20 Add
041 HA22228D Washer £6.05 Add
042 CH85091A Lever Assy Locking £39.17 Add
043 CH86205G Handle upper £70.56 Add
044 AF07574U CLAMP - LOWER SNORKEL £10.05 Add
045 CH86065A MULCHING PLUG (OBSOLETE) N/A POA
046 CA09444G BLADE DISC ASSY - 2 BLADE £139.18 Add
047 CA09444G BLADE DISC ASSY - 2 BLADE £139.18 Add
048 CA09434B KIT-BLADE AND BOLT 18-in HIGH LIFT £24.23 Add
051 CA09347A Washer - Blade tension £3.70 Add
052 EN72534D NUT £9.13 Add
053 EN72620B WASHER £7.75 Add
054 HA21313B Bolt (small Head) - Blade Disc - 4 stroke £8.19 Add
055 EE14537B Washer – 4-stroke models £16.04 Add
056 EE14484B Bolt blade disc EE14541B N/A POA
057 CH86177D Guide – starter cord £40.77 Add
058 HA24996D M5 nyloc nut £5.44 Add
49A CA09434B KIT-BLADE AND BOLT 18-in HIGH LIFT £24.23 Add
49B CA09433P BLADE HIGH LIFT (BOX OF 100) £347.69 Add
50A CA09277S BOLT NUT AND WASHER SET £8.54 Add
50B CA09277P Bulk nut & bolt set – 50 pairs £233.77 Add
59A EN72644B SLEEVE - STANDARD £63.69 Add
59B EE14352U SLEEVE - BRIGGS / HONDA £52.83 Add
59C EE14543A SLEEVE - ROUND TECUMSEH £98.02 Add
60A EN72957A Engine spacer - 4 stoke only £72.98 Add
60B EN73080A ENGINE SPACER - HONDA £28.96 Add
