FG770_0153 - Tornado Mulch or Catch Series

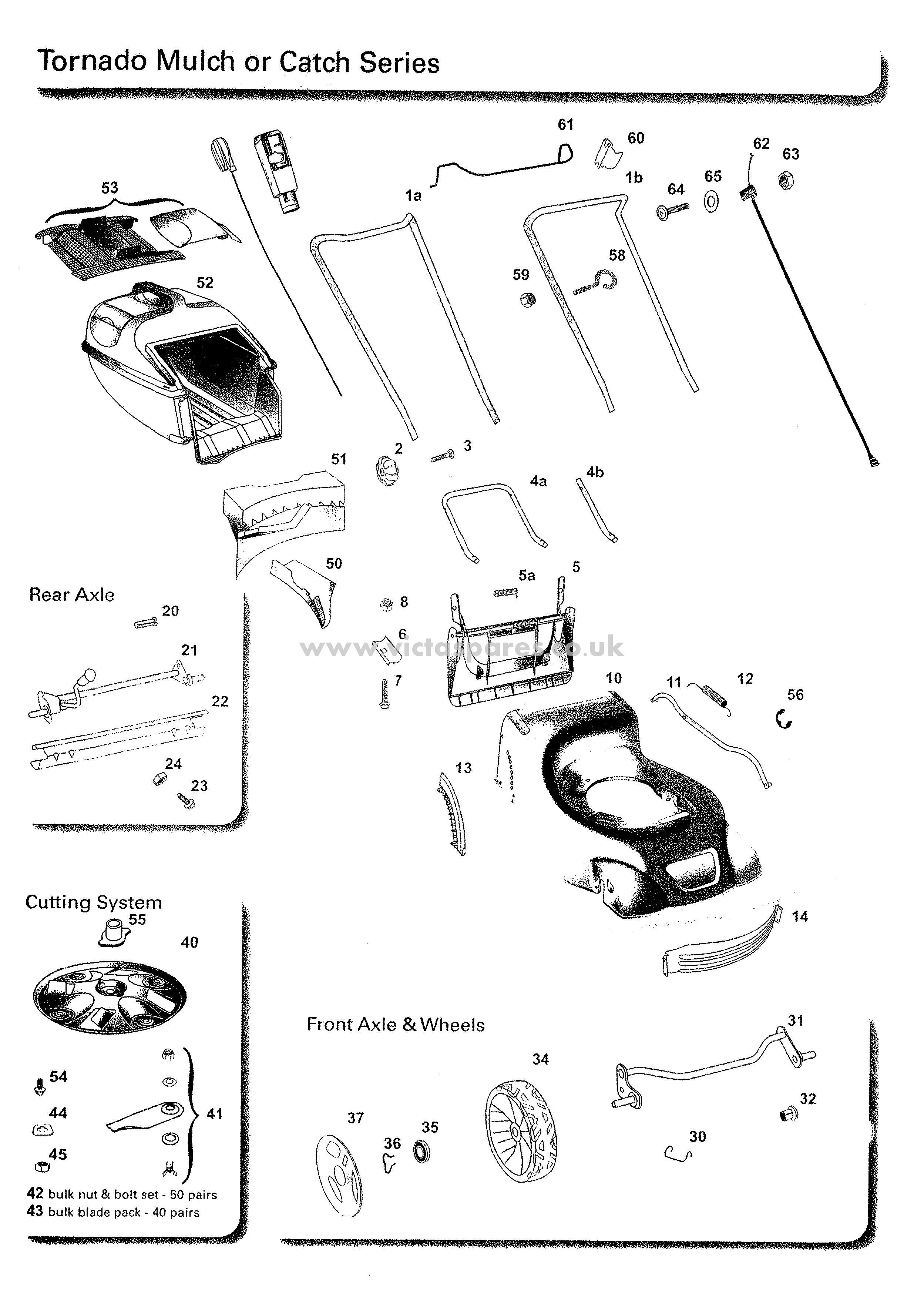

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG770_0153

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
CH86360N Flame red £243.43 Add
CH86360J Dark grey £243.43 Add
CH86360R Space blue £295.36 Add
GC11792P Blue & silver GC11765P £184.19 Add
002 CH86445A Handle knob quick spin N/A POA
003 EN72534D NUT - BLADE DISK, 2 STROKE £9.13 Add
004 CH86202G Lower handle looped £97.20 Add
005 CH86282G Black £109.61 Add
006 CH86410A Bracket handle £8.48 Add
007 EN72534D NUT - BLADE DISK, 2 STROKE £9.13 Add
008 EN72770B SLEEVE PULLEY £92.64 Add
010 CH86360G Gloss black £243.43 Add
011 CH86268D Connecting link £58.02 Add
012 CA09347A WASHER - BLADE TENSION £3.32 Add
013 CH86281A Height adjustment segment block £32.62 Add
014 CH86440A Front skirt £71.14 Add
01a CH86205GT Upper handle comfort grip CH86206G N/A POA
01b CH86552G Upper handle brake N/A POA
020 CH80903A WHEEL WASHER £6.03 Add
021 CH86260AW Rear axle CH86426A N/A POA
022 CH86407A Rear safety skirt £87.31 Add
023 CH86026A SIDE FLAP ASSEMBLY, RUBBER £136.45 Add
024 HA24844D NUT £5.51 Add
030 CH84899B CLIP £5.08 Add
031 CH86262AW Front axle CH86435A N/A POA
032 CH86276A BUSH £5.38 Add
033 CH86548A Wheel bush – Bully £7.55 Add
034 CH86400A Wheel assembly (Mustang) £76.02 Add
035 VBP0024 WHEEL BEARING £11.82 Add
036 CH86298P Wheel retainer £5.70 Add
037 CH86401A Hubcap terrain wheels £21.83 Add
040 CA09459G Blade disc – mulch or catch £116.14 Add
041 CA09470B KIT-BLADE & BOLT 19 INCH MOWERS £28.08 Add
042 HA24847D NUT £8.17 Add
043 CA09470P Bulk blade pack – 40 pairs £176.31 Add
045 CH85985A PLUG - 4 STROKE ONLY £6.71 Add
04b CH84871GT Lower handle classic CH84871G N/A POA
050 CH86408A Support bracket £26.44 Add
051 CH86409A Mulching plug £146.95 Add
052 GC11792P Blue & silver GC11765P £184.19 Add
053 GC11767V Vent & mesh pack £74.15 Add
054 CH80854G SADDLE PLATE £8.46 Add
055 CA09444G BLADE DISC £104.54 Add
056 EN72620B WASHER - BLADE DISK, 2 STROKE £7.75 Add
058 CH86177D Guide – starter cord £40.77 Add
059 HA24996D NUT, ZONE STARTER EYELET £5.44 Add
05a CH86825A SPACER £5.80 Add
060 EB68018G Bail bracket £21.86 Add
061 CH86306G Bail brake £96.90 Add
062 EB68034A CABLE BRAKE £75.11 Add
063 HA24847D NUT AND SHAKE PROOF WASHER £8.17 Add
064 HA20421D Screw 3/16” £5.44 Add
065 HA22274D Washer 3/16” £3.56 Add
21a CG82917A Height adjustment handle knob N/A POA
44a HA25131D CIRCLIP - CONNECTING LINK £6.72 Add
44b EE14537B Washer – 4-stroke models £16.04 Add
