FG406_10100 - UTILITY 4 AY 71 A8 CHASSIS ASSY.

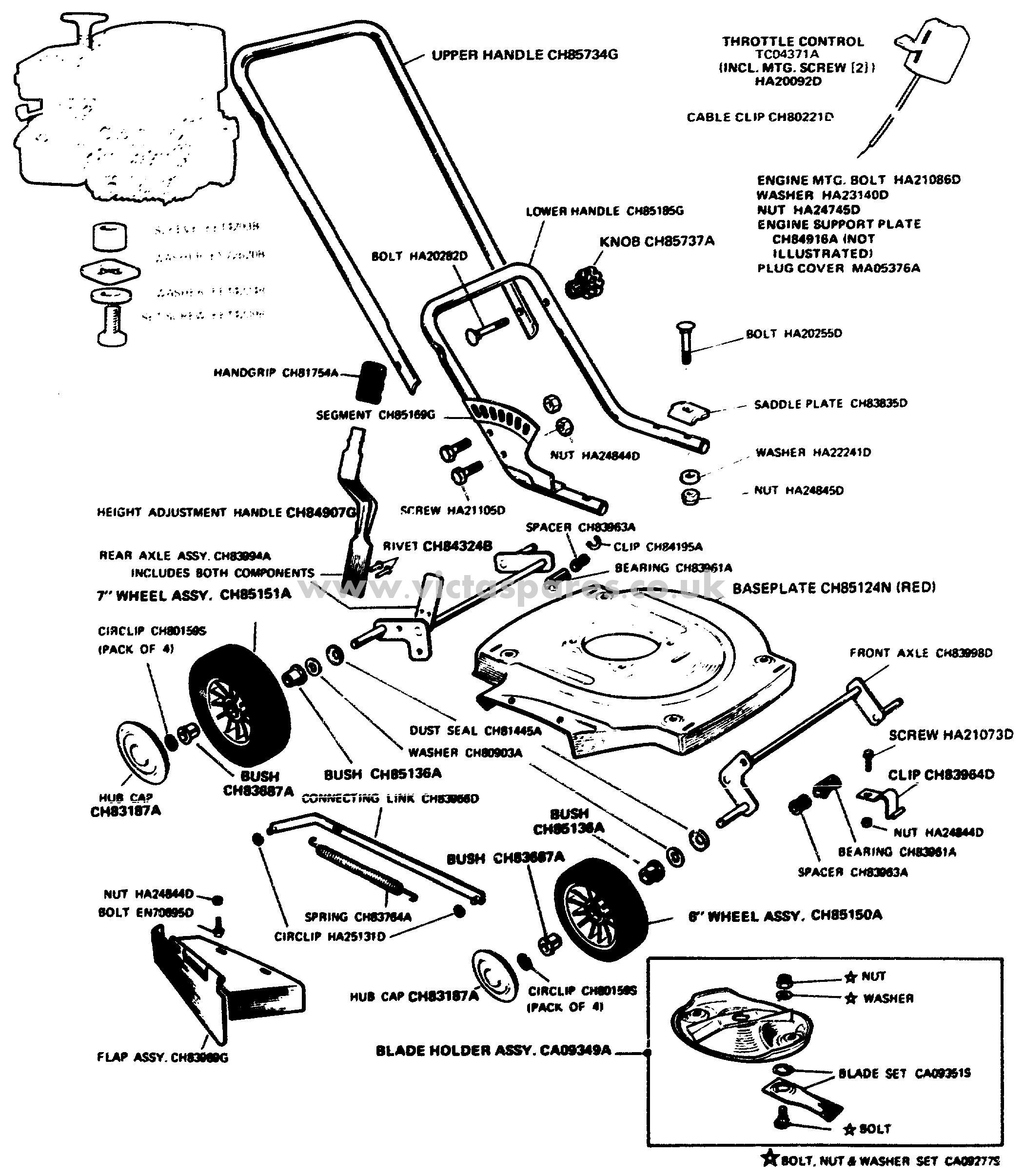

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG406_10100

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
EE14293B SLEEVE £61.34 Add
EN72620B WASHER £7.75 Add
EE14224B WASHER £1.53 Add
EE14484B Bolt blade disc EE14541B N/A POA
CH81754A Knob - Height adjust handle £16.93 Add
CH85169G Segment bracket £30.44 Add
HA20310D Bolt handle knob £5.07 Add
HA24844D Nut – rear safety skirt £6.05 Add
CH85734G UPPER HANDLE N/A POA
CH85185G HANDLE - LOWER LOOPED N/A POA
CH85737A KNOB (RED) £7.81 Add
TC04371G THROTTLE CONTROL TC04371A £54.14 Add
HA20092D (INCL. MTG. SCREW [2]) £3.80 Add
CH80221D CABLE CLIP £3.38 Add
HA21086D ENGINE MTG. BOLT £2.62 Add
HA23140D SPRING WASHER £5.62 Add
HA24745D NUT - LOCKING LEVER £6.05 Add
CH84916A ENGINE SUPPORT PLATE (only 18in Baseplate) £6.39 Add
MA05370S PLUG COVER MA05376A N/A POA
HA20310D Bolt handle knob £5.07 Add
CH83835D Saddle plate £7.19 Add
HA22241D Washer - Saddle plate £6.05 Add
HA24845D Nut £6.39 Add
CH84907G Handle - Height adjust £56.81 Add
CH86145A Axle assembly - Rear CH83994A N/A POA
CH87082G WHEEL £49.42 Add
VBP0002 CIRCLIP £3.76 Add
CH86112A HUB CAP £6.04 Add
HA24844D Nut – rear safety skirt £6.05 Add
EN70695D BOLT £2.13 Add
CH85638G Side flap assembly, Steel £83.04 Add
HA21105D Bolt segment bracket £3.46 Add
HA25184B Rivet - Height adjust handle CH84324B £5.89 Add
CH81445A Dust seal stub axle to wheel £3.84 Add
CH80903A Wheel washer £6.60 Add
CH85136U BUSH CH85136A N/A POA
CH86344D Connecting link £49.22 Add
CH83687A BUSH £5.07 Add
CH85136U BUSH CH85136A N/A POA
CH83687A BUSH £5.07 Add
CH83764A SPRING N/A POA
HA25131D Circlip £7.33 Add
CH86112A HUB CAP £6.04 Add
VBP0002 CIRCLIP £3.76 Add
CA09444G BLADE DISC ASSY - 2 BLADE £139.18 Add
CH86825A Axle spacer CH83963A N/A POA
CH84195A Axle spacer clip £7.76 Add
CH83961A Axle bearing £3.73 Add
CH86030K BASEPLATE (RED) CH85124N N/A POA
CH86125G FRONT AXLE CH83998D N/A POA
HA21073D Screw £6.05 Add
CH83964D CLIP N/A POA
HA24844D Nut – rear safety skirt £6.05 Add
CH83961A Axle bearing £3.73 Add
CH86825A Axle spacer CH83963A N/A POA
CH86246A FRONT WHEEL ASSY. CH83357A N/A POA
CA09351B KIT-BLADE & BOLD UTE £20.36 Add
