FG406_1600 - COMMANDO 4ST AA 050 A7 CHASSIS ASSY

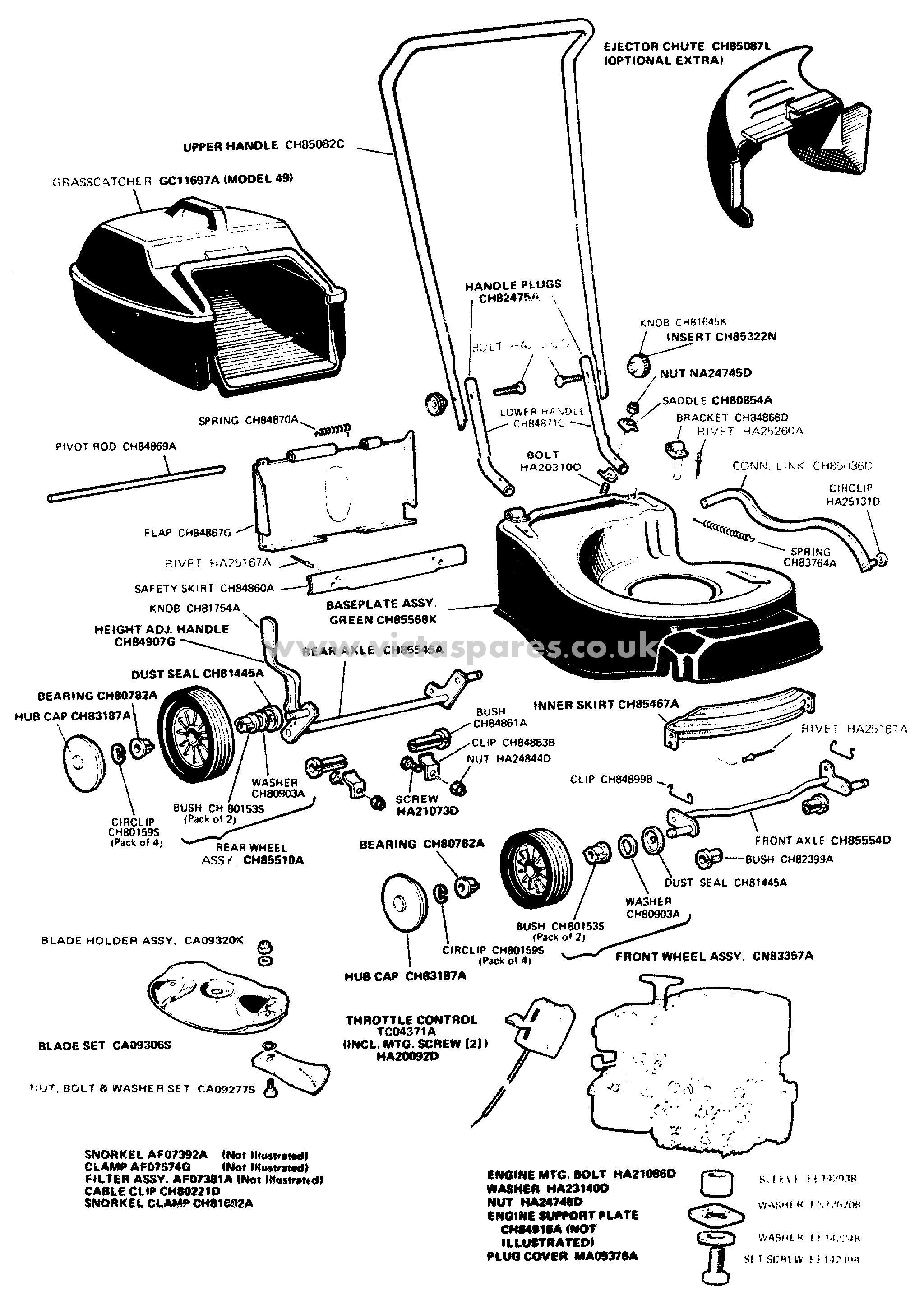

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG406_1600

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
CH86205G Handle upper £70.56 Add
GC11753A [A. STANDARD CATCHER - UP TO 1999] SINGLE VENT - MODEL 52 >USE £175.65 Add
CH86825A SPACER £5.80 Add
CH84869A PIVOT ROD £6.77 Add
CH84867G FLAP £74.65 Add
CH83835D SADDLE PLATE £6.59 Add
HA21073D SCREW £5.51 Add
CH82904B SPRING - HEIGHT LEVER N/A POA
CH86120A AXLE ASSY - REAR £81.30 Add
CH82917A KNOB - HEIGHT LEVER £9.67 Add
VBP0024 WHEEL BEARING £11.82 Add
CH85943A SPRING - CONNECTING LINK £14.83 Add
CH85432M BASEPLATE ASSY - BRUNSWICK GREEN £220.45 Add
CH85956A AXLE ASSY – REAR £62.87 Add
CH86344D HEIGHT ADJUSTER £46.00 Add
CH80153S Wheel bearing - Bush (OBSOLETE) N/A POA
CH84861A AXLE BUSH - REAR £4.61 Add
CH87082G WHEEL £49.42 Add
CA09442G BLADEHOLDER ASSY. CA09320K N/A POA
HA20410D SCREW £6.77 Add
EN73054B WASHER - BLADE DISK, 4 STROKE £12.48 Add
AF07392A SNORKEL (NOT ILLUSTRATED) £5.10 Add
AF07574U CLAMP - LOWER SNORKEL £10.05 Add
AF07789A FILTER ASSY. (NOT ILLUSTRATED) AF07381A £28.76 Add
CH80221D CABLE CLIP £3.38 Add
CH81602A CLAMP - 2 STROKE ONLY £16.33 Add
CH86734A [B. 1999 SERIES CATCHER] DISCHARGE CHUTE - 18" MODELS CH86087L N/A POA
CH82475A HANDLE PLUG £6.39 Add
EN72534D NUT - BLADE DISK, 2 STROKE £9.13 Add
CH84871GT Lower handle classic CH84871G N/A POA
EN72534D NUT - BLADE DISK, 2 STROKE £9.13 Add
CH85737A KNOB (RED) £7.81 Add
CH85322N INSERT N/A POA
NA24745D NUT N/A POA
EN73054B WASHER - BLADE DISK, 4 STROKE £12.48 Add
CH83961A AXLE BEARING £3.35 Add
HA25260A RIVET £4.41 Add
CH85036D CONN. LINK £20.76 Add
EN72620B WASHER - BLADE DISK, 2 STROKE £7.75 Add
CH83764A SPRING N/A POA
HA20310D BOLT £4.61 Add
CH80903A WHEEL WASHER £6.03 Add
HA22249D WASHER £5.51 Add
HA24844D NUT £5.51 Add
CH84899B CLIP £5.08 Add
CH84860A SAFETY SKIRT £83.84 Add
VBP0024 WHEEL BEARING £11.82 Add
HA20092D (INCL. MTG. SCREW [2]) £3.80 Add
TC04371G THROTTLE CONTROL TC04371A £54.14 Add
CH85943A SPRING - CONNECTING LINK £14.83 Add
CH86344D HEIGHT ADJUSTER £46.00 Add
CH80153S Wheel bearing - Bush (OBSOLETE) N/A POA
CH84861A AXLE BUSH - REAR £4.61 Add
CN83357A FRONT WHEEL ASSY. N/A POA
CH82917A KNOB - HEIGHT LEVER £9.67 Add
CA09445G BLADE DISK WITHOUT BLADES £108.78 Add
HA25131D CIRCLIP - CONNECTING LINK £6.72 Add
CH83835D SADDLE PLATE £6.59 Add
HA21086D ENGINE MTG. BOLT £2.62 Add
HA23140D SPRING WASHER £5.62 Add
HA24745D NUT - LOCKING LEVER £6.05 Add
CH84916A ENGINE SUPPORT PLATE (only 18in Baseplate) £6.39 Add
MA05370S PLUG COVER MA05376A N/A POA
EE14293B SLEEVE £61.34 Add
HA25131D CIRCLIP - CONNECTING LINK £6.72 Add
EE14224B WASHER £1.53 Add
CH80854G SADDLE PLATE £8.46 Add
