FG406_2500 - CRAFTSMAN UTILITY BE 034 A6

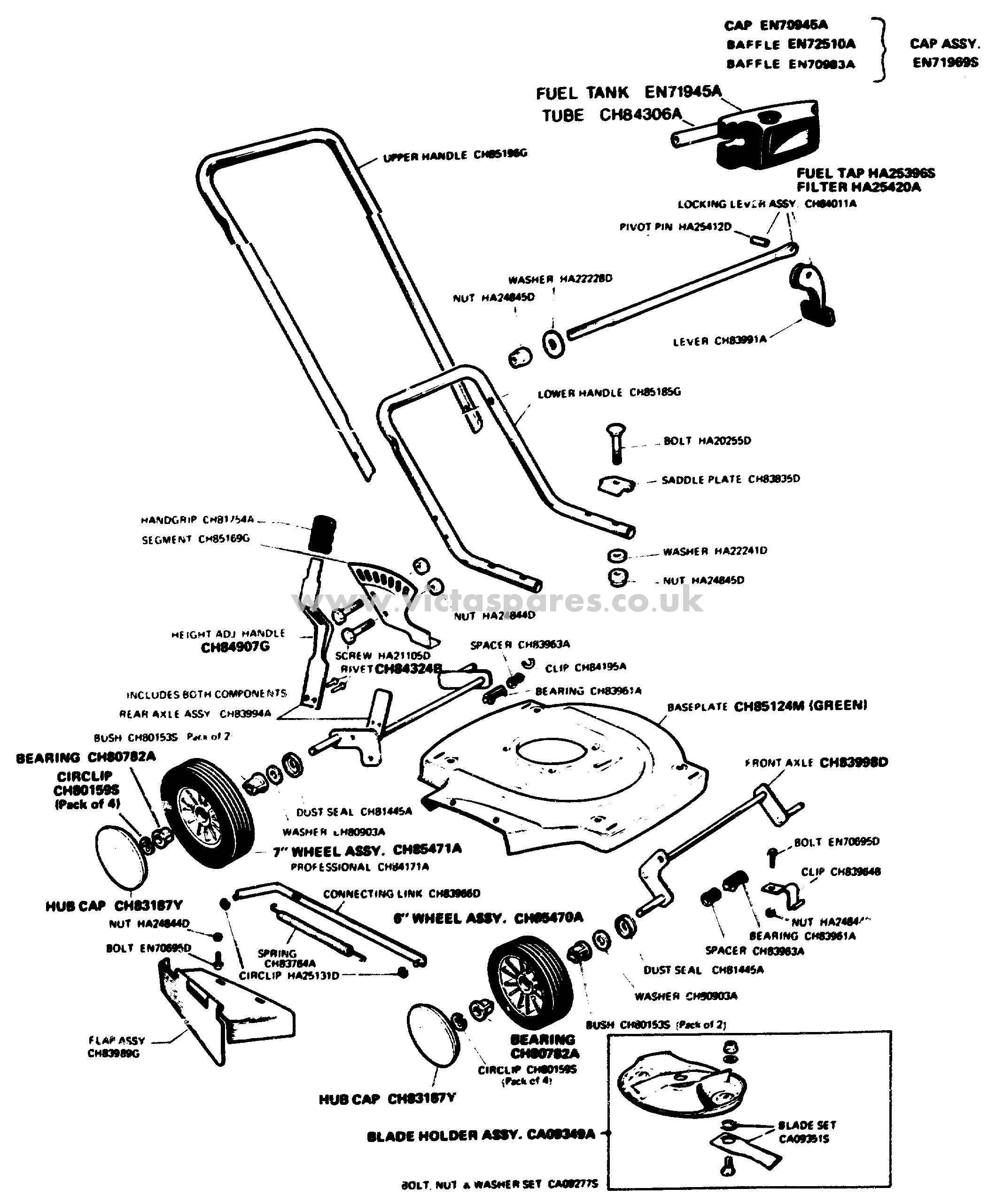

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG406_2500

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
CH82904B SPRING - HEIGHT LEVER N/A POA
EN72957A ENGINE SPACER - 4 STROKE ONLY £68.01 Add
CH86120A AXLE ASSY - REAR £81.30 Add
HA25687D U- CLIP - REAR FLAP £12.67 Add
CH80153S Wheel bearing - Bush (OBSOLETE) N/A POA
VBP0024 WHEEL BEARING £11.82 Add
CH86344D HEIGHT ADJUSTER £46.00 Add
CH85943A SPRING - CONNECTING LINK £14.83 Add
HA24844D NUT £5.51 Add
EN70695D BOLT £2.13 Add
EN72534D NUT - BLADE DISK, 2 STROKE £9.13 Add
HA24844D NUT £5.51 Add
CH85868A SPRING - REAR FLAP £8.20 Add
CH85967D PIVOT ROD - REAR FLAP £26.01 Add
CH85958D BRACKET - REAR FLAP £4.78 Add
HA21105D Bolt segment bracket £3.46 Add
CH86334A WHEEL ASSEMBLY £57.13 Add
CH82917A KNOB - HEIGHT LEVER £9.67 Add
CH84861A AXLE BUSH - REAR £4.61 Add
CH87082G WHEEL £49.42 Add
CH87082G WHEEL £49.42 Add
VBP0002 CIRCLIP £3.76 Add
CH86246A FRONT WHEEL ASSY. CH83357A N/A POA
CH83764A SPRING N/A POA
EN72620B WASHER - BLADE DISK, 2 STROKE £7.75 Add
EN71969A [V160 COWLING (VANTAGE)] FUEL CAP £22.08 Add
EN71969A [V160 COWLING (VANTAGE)] FUEL CAP £22.08 Add
EN71969A [V160 COWLING (VANTAGE)] FUEL CAP £22.08 Add
EN71969A [V160 COWLING (VANTAGE)] FUEL CAP £22.08 Add
EN71945A TANK £59.41 Add
CH84306A BUFFER TUBE £9.50 Add
CH86205G Handle upper £70.56 Add
EN72866B FUEL TAP ASSY VICT 2ST £14.29 Add
HA25420A FILTER £7.68 Add
CH84011A HAND LEVER - HANDLE LOCK CH83991A N/A POA
HA25412D PIN - LOCKING LEVER £6.05 Add
HA22228D Washer £6.05 Add
EN72770B SLEEVE PULLEY £92.64 Add
CH84011A HAND LEVER - HANDLE LOCK CH83991A N/A POA
CH85185G HANDLE - LOWER LOOPED N/A POA
EN72534D NUT - BLADE DISK, 2 STROKE £9.13 Add
HA25167A RIVET £5.51 Add
CH85217A GRASS RAMP £35.00 Add
EN72770B SLEEVE PULLEY £92.64 Add
CH85124M BASEPLATE (GREEN) N/A POA
CH86125G FRONT AXLE CH83998D N/A POA
EN70695D BOLT £2.13 Add
CH86225A REAR FLAP ASSY. £91.37 Add
HA24844D NUT £5.51 Add
CH85958D BRACKET - REAR FLAP £4.78 Add
CH85868A SPRING - REAR FLAP £8.20 Add
CH82917A KNOB - HEIGHT LEVER £9.67 Add
CH84861A AXLE BUSH - REAR £4.61 Add
CH80153S Wheel bearing - Bush (OBSOLETE) N/A POA
VBP0024 WHEEL BEARING £11.82 Add
CH86344D HEIGHT ADJUSTER £46.00 Add
CH85943A SPRING - CONNECTING LINK £14.83 Add
CA09444G BLADE DISC ASSY - 2 BLADE £139.18 Add
EN73054B WASHER - BLADE DISK, 4 STROKE £12.48 Add
EN72620B WASHER - BLADE DISK, 2 STROKE £7.75 Add
