FG406_27200 - AY071EU94 UTILITY 4ST QUADRA 148CC ENGINE ASSY VU40015A

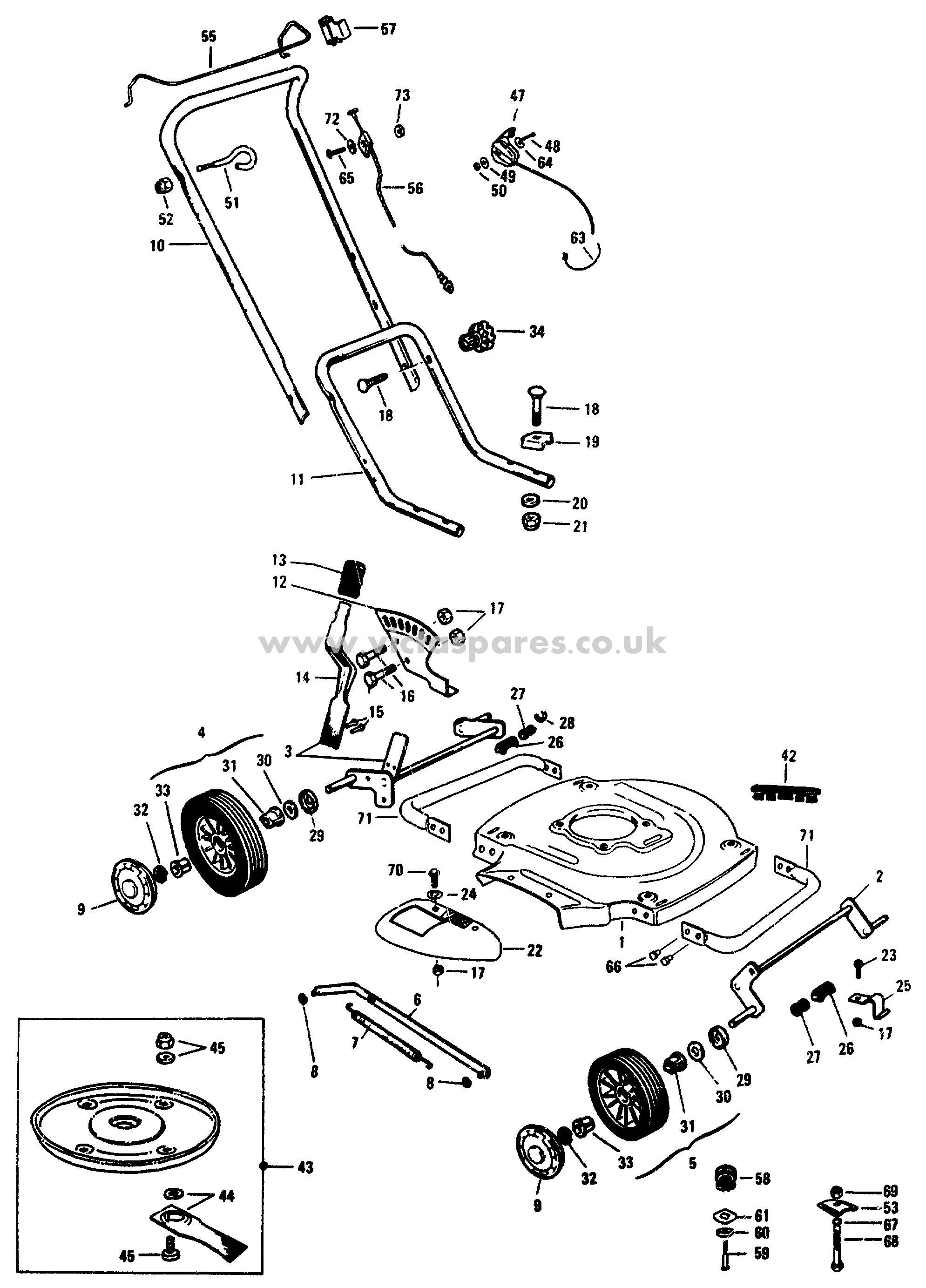

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG406_27200

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 CH86030U BASEPLATE ASSY (SILVER) N/A POA
002 CH86125G FRONT AXLE CH83998D N/A POA
003 HA25687D U- CLIP - REAR FLAP £12.67 Add
004 CH87082G WHEEL £49.42 Add
005 CH86246A FRONT WHEEL ASSY. CH83357A N/A POA
006 VBP0002 CIRCLIP £3.76 Add
007 CA09347A WASHER - BLADE TENSION £3.32 Add
008 EN72620B WASHER - BLADE DISK, 2 STROKE £7.75 Add
009 CH85943A SPRING - CONNECTING LINK £14.83 Add
010 CH86011U HANDLE UPPER (SILVER) £66.64 Add
011 CH85185U LOWER HANDLE (SILVER) N/A POA
012 EN72957A ENGINE SPACER - 4 STROKE ONLY £68.01 Add
013 CH82904B SPRING - HEIGHT LEVER N/A POA
014 CH86120A AXLE ASSY - REAR £81.30 Add
015 CH86334A WHEEL ASSEMBLY £57.13 Add
016 HA21105D Bolt segment bracket £3.46 Add
017 HA24844D NUT £5.51 Add
018 EN72534D NUT - BLADE DISK, 2 STROKE £9.13 Add
019 HA25167A RIVET £5.51 Add
020 CH85217A GRASS RAMP £35.00 Add
021 EN72770B SLEEVE PULLEY £92.64 Add
022 CA09277P BOLT, WASHER, NUT (BOX OF 100) £219.07 Add
023 CH84860A SAFETY SKIRT £83.84 Add
024 HA21321D BOLT - AXLE RETAINER £5.51 Add
025 CH86225A REAR FLAP ASSY. £91.37 Add
026 CH85958D BRACKET - REAR FLAP £4.78 Add
027 CH85868A SPRING - REAR FLAP £8.20 Add
028 CH85967D PIVOT ROD - REAR FLAP £26.01 Add
029 CH82917A KNOB - HEIGHT LEVER £9.67 Add
030 CH84861A AXLE BUSH - REAR £4.61 Add
031 CH80153S Wheel bearing - Bush (OBSOLETE) N/A POA
032 CH86344D HEIGHT ADJUSTER £46.00 Add
033 CH83687A BUSH £5.07 Add
034 CH85737A KNOB (RED) £7.81 Add
042 CA09351B KIT - BLADE & BOLT UTE N/A POA
043 CA09420A BLADE HOLDER ASSY £82.09 Add
044 EN72620B WASHER - BLADE DISK, 2 STROKE £7.75 Add
045 EN73054B WASHER - BLADE DISK, 4 STROKE £12.48 Add
047 TC04426AZ THROTTLE ASSY - BRIGGS 1180mm £60.98 Add
048 HA20407D [4 STROKE THROTTLE CONTROLS] SCREW £4.29 Add
049 HA22274D Washer 3/16” £3.56 Add
050 HA24742D NUT £6.05 Add
051 CH86177D Guide – starter cord £40.77 Add
052 HA24996D NUT, ZONE STARTER EYELET £5.44 Add
053 CH84916A ENGINE SUPPORT PLATE (only 18in Baseplate) £6.39 Add
054 CH86027G Guard (bumper) – Europe Only £84.24 Add
055 EB68016G Brake Bail Pro 550 Models Only £46.45 Add
056 EB68035A CABLE BRAKE 1250MM N/A POA
057 EB68039G BAIL BRACKET N/A POA
058 EE14293B SLEEVE £61.34 Add
059 CH80854G SADDLE PLATE £8.46 Add
060 EE14537B Washer – 4-stroke models £16.04 Add
061 HA25131D CIRCLIP - CONNECTING LINK £6.72 Add
062 EN72972D SPACER (ENGINE) 4.5MM (NOT ILLUS) £16.11 Add
063 HA25655A CABLE TIE £3.67 Add
064 HA23163D WASHER £6.05 Add
065 HA20421D Screw 3/16” £5.44 Add
066 CH83835D SADDLE PLATE £6.59 Add
067 HA23140D SPRING WASHER £5.62 Add
068 HA21086D ENGINE MTG. BOLT £2.62 Add
069 HA24745D NUT - LOCKING LEVER £6.05 Add
070 HA21079D Nut Saddle Plate £6.05 Add
071 CH86027G Guard (bumper) – Europe Only £84.24 Add
072 HA22274D Washer 3/16” £3.56 Add
073 HA24847D NUT AND SHAKE PROOF WASHER £8.17 Add
