FG406_2900 - MUSTANG AU 067 UK7 MUSTANG AU 067 EX7 CHASSIS ASSY.

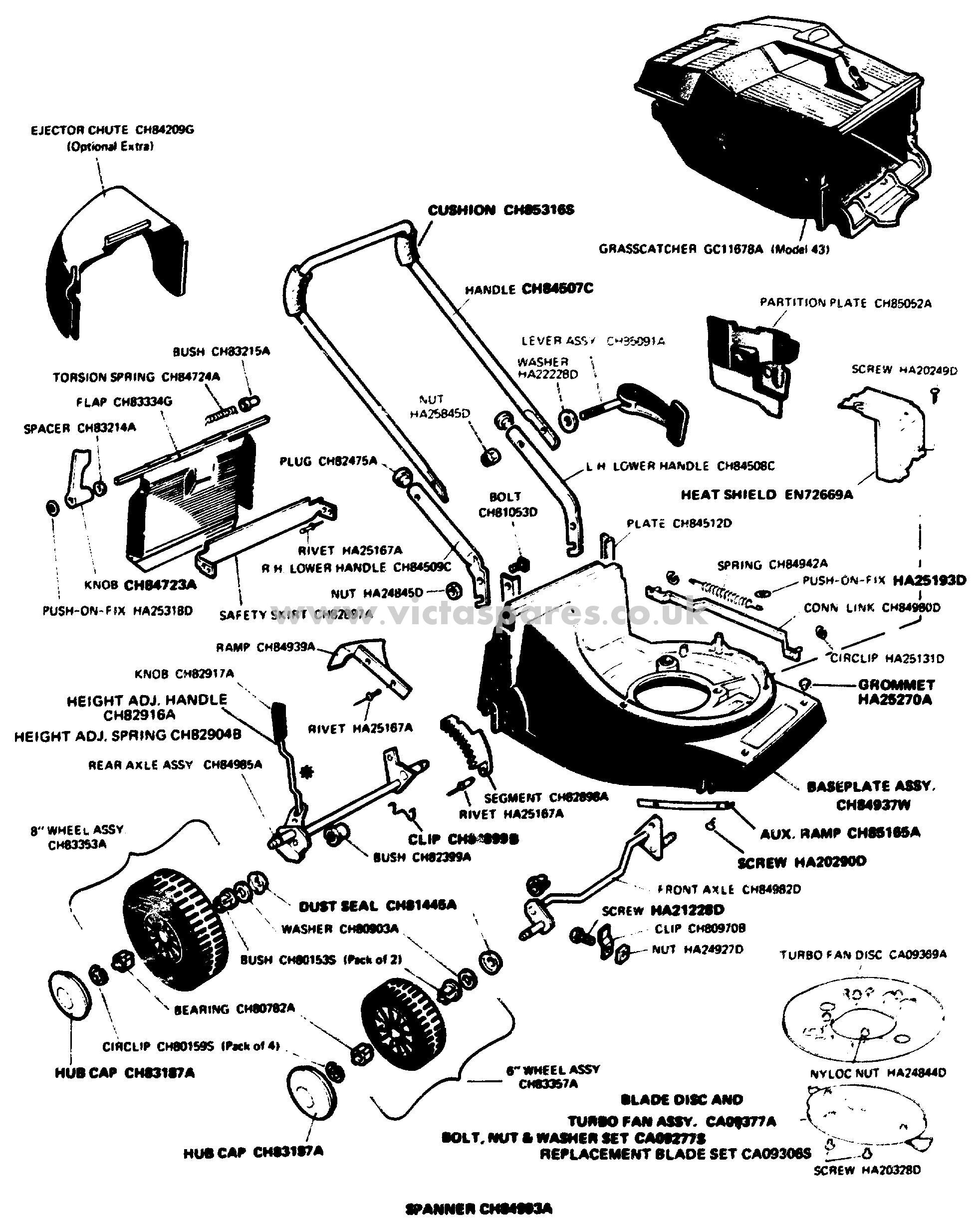

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG406_2900

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
CH84209G EJECTOR CHUTE £68.20 Add
CH83215A BUSH - PIVOT ROD - UP TO 2/00 £6.39 Add
CH84724A Spring Flap Torsion £9.95 Add
CH85632G Rear Flap Assy (OBSOLETE) N/A POA
CH83214A SPACER - PIVOT ROD - UP TO 2/00 £6.39 Add
CH82475A HANDLE PLUG £6.39 Add
CH84723A LEVER - REAR FLAP - UP TO 2/00 £11.64 Add
HA25318D PUSH-ON-FIX £5.51 Add
CH83835D SADDLE PLATE £6.59 Add
112293200/0 NUT £2.46 Add
EN72770B SLEEVE PULLEY £92.64 Add
CH82897A SAFETY SKIRT N/A POA
CH84939A RAMP £15.90 Add
CH81445A WHEEL DUST SEAL £3.46 Add
CH82916A Handle & Spring Assy Ht. Adjust - Push (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOLETE) (OBSOL N/A POA
CH81754A KNOB - HEIGHT ADJUST LEVER £12.83 Add
CH84985A REAR AXLE ASSY. £91.60 Add
CH86248A REAR WHEEL ASSY PUSH - 14.2 MM DIA AXLE £109.41 Add
CH83835D SADDLE PLATE £6.59 Add
CH82898A Segment Locking £17.04 Add
CH83835D SADDLE PLATE £6.59 Add
CH84899B CLIP £5.08 Add
CA09445G BLADE DISK WITHOUT BLADES £108.78 Add
CH82917A KNOB - HEIGHT LEVER £9.67 Add
CH84861A AXLE BUSH - REAR £4.61 Add
CH80153S Wheel bearing - Bush (OBSOLETE) N/A POA
VBP0024 WHEEL BEARING £11.82 Add
CH86344D HEIGHT ADJUSTER £46.00 Add
CH85943A SPRING - CONNECTING LINK £14.83 Add
CH85316S CUSHION GRIP N/A POA
GC11691A GRASSCATCHER (MODEL 43) GC11678A £189.00 Add
CH86205G Handle upper £70.56 Add
CH85052A PARTITION PLATE N/A POA
CH85091A Lever Assy Locking £39.17 Add
HA22228D Washer £6.05 Add
HA20249U SCREW - CABLE £6.60 Add
EN72770B SLEEVE PULLEY £92.64 Add
CH81053D BOLT N/A POA
112293200/0 NUT £2.46 Add
EN72669A HEAT SHIELD £96.90 Add
CH84512D PLATE £2.82 Add
CH84942A Spring Balance £21.30 Add
HA25193D RETAINER - CONLINK SPRING £6.05 Add
CH84980D CONN. LINK £28.87 Add
EN72620B WASHER - BLADE DISK, 2 STROKE £7.75 Add
HA25270A Grommet Guard £6.05 Add
CH85882Q BASEPLATE ASSY. CH84937W N/A POA
CH85165A AUX. RAMP £8.87 Add
HA20415D BOLT - G/BOX COVER £6.05 Add
CH84982D FRONT AXLE £83.35 Add
HA21228D Screw ¼ Unc £5.62 Add
CH80970B Clip Axle £6.39 Add
HA24927D NUT - AXLE CLAMP £2.98 Add
CA09377A TURBO FAN DISC CA09369A N/A POA
HA24844D NUT £5.51 Add
CH86246A FRONT WHEEL ASSY. CH83357A N/A POA
CA09377A TURBO FAN DISC CA09369A N/A POA
EN73054B WASHER - BLADE DISK, 4 STROKE £12.48 Add
HA20410D SCREW £6.77 Add
HA20328D SCREW £3.80 Add
CH84993A SPANNER N/A POA
